Wireless Microphone T-592UW
itc wireless microphone, combined mobility, reliability, and superior sound quality, is the ideal choice for live performances, public speaking engagements, and other applications. Our wireless microphones deliver clear, natural, and uninterrupted vocal reproduction, ensuring a seamless and professional audio experience for presenters and audience.
-
Frequency range 540MHz-590MHz, 640MHz-690MHz
-
Frequency response 20Hz~20kHz (±3dB)
-
SNR ≥105dB (XLR)
-
Working distance About 80m
-
Receive sensitivity <-95dBm
- Adopt unique digital U-band transmission technology, pi/4-DQPSK modulation mode, with strong anti-interference ability, low bit error rate, stable transmission.
- Adopt unique encryption method for audio transmission to ensure the security of conference content.
- Adopt unique ID code pilot technology to prevent cross-frequency interference.
- One-key frequency weep to avoid interference; one-key IR frequency pairing, easy to operate.
- With reverberation, treble/alto/bass adjustment.
- With two balanced outputs and one unbalanced mixing output.
- The receiver panel is exquisitely crafted and neatly designed.
- The receiver uses a 2.2-inch TFT-LCD screen to display more delicate information.
- The transmitter uses an OLED display to easily obtain the current information of the device.
- The transmission power is adjustable, and the transmission power can be adjusted as needed.
- With a volume adjustment key, the transmitter volume can be adjusted.
- With one-key mute function, strong practicability.
- With low power consumption design, the maximum continuous speaking time can exceed 10 hours.

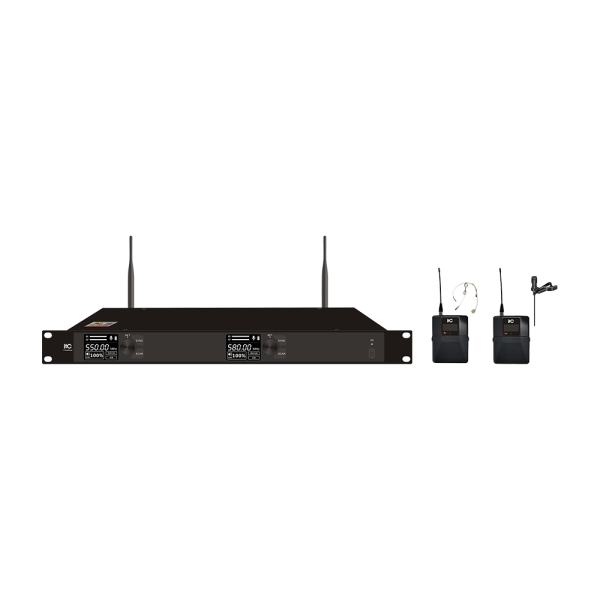

- The system includes a receiver + a headset wireless microphone + a lapel wireless microphone.
| Model | T-592UW |
| System parameters | |
| Frequency range | 640MHz-690MHz |
| Modulation mode | pi/4-DQPSK |
| Frequency response | 20Hz~20kHz (±3dB) |
| SNR | ≥105dB (XLR) |
| THD+N | <0.1% |
| Working distance | About 80m |
| Receiver parameters | |
| Antenna interface | BNC/50Ω |
| Receiver sensitivity | ＜-95dBm |
| Maximum output | Balanced output 500mV, unbalanced output 1000mV |
| Power supply | DC 12V/1A |
| Working current | ≤320mA |
| Dimension (L*W*H) | 443×212×44mm |
| Weight | 2.225kg |
| Transmitter parameters | |
| Mic type | Condenser Microphone (Headset Microphone/Lapel Microphone) |
| Output power | ≥10dBm |
| Working current | ≤200mA |
| Battery capacity | 2×1.5V(AA) |
| Battery life | >10H |
| Dimension | 86mm*65.3mm*23.8mm(excluding mic cartridge) |
| Weight | 185g (including battery) |
Technical Specification
Some words for solution selections description
-
Digital U-band transmission technology with pi/4-DQPSK modulation
+- Strong anti-interference ability
- Low bit error rate
- Stable transmission
-
Unique encryption method for audio transmission
+Ensure the security of meeting content
-
Unique ID code pilot technology
+Prevent cross-frequency interference
-
One-key frequency scanning and infrared frequency matching
+ -
Support reverberation and treble/alto/bass adjustment
+ -
One-key mute function
+ -
Low power consumption design for handheld microphone
+Maximum continuous speech time of over 10 hours
