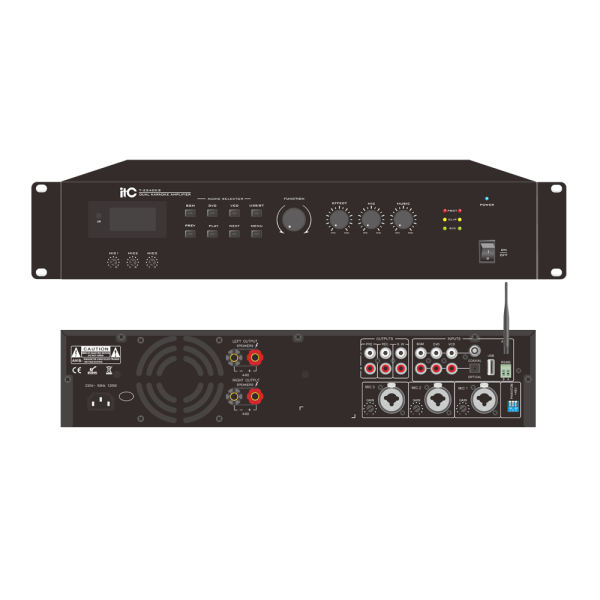

Multimedia Amplifier T-2240KS
As a crucial component in professional sound system, itc professional amplifier plays a pivotal role in delivering high-fidelity sound and reproducing audio sources with exceptional accuracy and force, effectively filling venues with rich, clear, and dynamic sound and achieving an unparalleled listening experience.
-
Rated output power 2x240W@4R 2x120W@8R
-
Input sensitivity MIC1,2,3: ±2.5mV-± 200mV DVD, VCD: 350mV
-
SNR Mic ≥85dB Music ≥85dB
- The audio source supports multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone and so on.
- Built-in DSP audio processing supports delay reverberation, mixing, anti-howling (7-level frequency shift), tone shift (10-level), vocal excitation, original vocal elimination, and other functions.
- Support infrared remote control, coding switch control, and button control.
- The panel LCD display can realize an intuitive display of various functions and working status.
- Provide 3 RCA line inputs and 3 balanced microphone inputs with phantom power.
- Adopt DSP processor to preset multiple scene modes.
- The volume of each microphone is independently adjustable, the effect is adjustable, the music volume is independently adjustable; the treble, alto and bass are adjustable.
- With 1 RS485 interface, support integrated control of RS485 communication central control.
- Support USB playback, and support MP3, WAV, APE, FLAC and other mainstream music formats.
- Support soft starter protection for power on/off, and the voltage limit, short circuit, overload, and overheat protection.
- Panel: aluminum alloy material.
- Built-in 48V phantom switch control function.
- It supports Bluetooth function and can be connected to mobile phones, computers and other devices.
- Each microphone input has a gain adjustment function, and the microphone can match the best input state of the amplifier.
| Model | T-2240KS |
| Rated output power | 2x240W@4R; 2x120W@8R |
| Input sensitivity and impedance | MIC1, 2, 3: ±2.5mV/600Ω-±200mV/10KΩ, with phantom balanced input); DVD: 350mV/10KΩ, (unbalanced input); VCD: 350mV/10KΩ, (unbalanced input); BMG: 350mV /10KΩ, (unbalanced input); optical fiber, coaxial: 1000mV |
| Output | S.W(150Hz): 1V/470Ω; PRE: 1V±50mv/470Ω; REC: 200mV±20mv/470Ω |
| Microphone tone | Low frequency: ±10dBat100Hz; Intermediate frequency: ±10dBat2KHz; High frequency: ±10dBat10KHz |
| Music tone | Low frequency: ±10dBat100Hz; Intermediate frequency: ±10dBat2KHz; High frequency: ±10dBat10KHz |
| THD | Amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1% |
| USB playback | Support MP3, WAV, APE, FLAC |
| Communication | RS485 communication central control integrated control function |
| Frequency response | DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (± 3dB); Mic: 50HZ (± 3dB)-16KHZ (± 3dB) |
| SNR | Mic: ≥85dB; Music: ≥85dB |
| Protection | Overload, short circuit, over-voltage, under voltage protection |
| Indicator light | Power supply, output level |
| Power voltage | ~220V 50Hz |
| Power consumption | 600W |
| Weight | 5kg |
| Dimension | 430×335×88mm (L×W×H) |
Technical Specification
Some words for solution selections description
-
Built-in DSP processor
+- Realize various scene presets
- Sound processing functions such as delay, reverberation, mixing, anti-howling (7-level frequency shift), tone shift (10-level), vocal excitation, and original vocal elimination
-
Optional control methods
+- IRremote control
- Coding switch
- Button control
-
Independent adjustment of microphone and music
+- Volume adjustment
- Effect adjustment
- Treble/alto/bass adjustment
- Input gain adjustment
-
Comprehensive protective measures
+- Soft start protection
- Overvoltage protection
- Undervoltage protection
- Overload protection
- Short circuit protection
- Overheat protection
