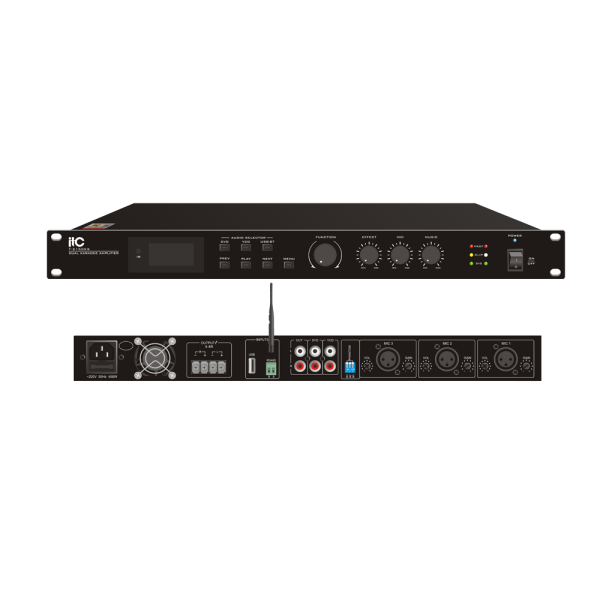

Multimedia Amplifier T-2150KS
As a crucial component in professional sound system, itc professional amplifier plays a pivotal role in delivering high-fidelity sound and reproducing audio sources with exceptional accuracy and force, effectively filling venues with rich, clear, and dynamic sound and achieving an unparalleled listening experience.
-
Rated output power 2x150W@4R 2x95W@8R
-
Input sensitivity MIC1,2,3: ±2.5mV-± 200mV DVD, VCD: 350mV
-
SNR Mic ≥85dB Music ≥85dB
- With USB, Bluetooth, Line, MICand other multiple audio inputs.
- Built-in DSP sound processing, with functions such as reverb, echo, howling, noise cancellation, aviation, equalization and pitch shifting.
- It can be controlled by IRremote control, coding switch and buttons.
- The panel LCD display can realize an intuitive display of various functions and working status.
- With 2*RCA line input, 3*balanced microphone with phantom power input.
- Using DSP processor to realize various scene
- Support independent volume adjustment of each microphone, effect adjustment, independent adjustment of music volume, and treble/alto/bass adjustment.
- With 1 RS485 interface, support integrated control of RS485 communication central control.
- Support USB playback, MP3, WAV, APE, FLAC, and other mainstream music formats.
- With power-on/off soft-start protection function, and voltage limit, short circuit, overload, and overheat protection.
- Panel: aluminum alloy material.
- Built-in 48V phantom switch control function.
- Support Bluetooth function, connect through mobile phones, computers and other devices.
- Each microphone input is designed with a gain adjustment function, and the microphone can match the best amplifier input state.
| Model | T-2150KS |
| Rated output power | 2x150W@4R; 2x95W@8R |
| Input sensitivity and impedance | MIC1,2,3: ±2.5mV/600Ω-± 200mV/10KΩ, with phantom balanced input; DVD: 350mV/10KΩ, (unbalanced input); VCD: 350mV/10KΩ, (unbalanced input) |
| Output | OUT: 1V±50mv/470Ω |
| Mic tone | Bass: ±10dBat100Hz; Alto: ±10dBat2KHz; Treble: ±10dBat10KHz |
| Musical tone | Bass: ±10dBat100Hz; Alto: ±10dBat2KHz; Treble: ±10dBat10KHz |
| THD | Amplifier rated output power 1Kz (@1/8A power) ≤0.1% |
| USB playback | Support MP3, WAV, APE, FLAC |
| Communication | RS485 communication central control integration function |
| Frequency response | DVD, VCD: 20Hz(±3dB)-20KHz(±3dB); Mic: 50Hz(±3dB)-16KHz(±3dB) |
| SNR | Mic: ≥85dB; Music: ≥85dB |
| Protection function | Overload, short circuit, overvoltage, undervoltage protection |
| Indicator light | Power, output level |
| Power voltage | ~220V 50Hz |
| Power loss | 450W |
| Weight | 3.1kg |
| Dimension (L×W×H) | 430×209×88mm |
Technical Specification
Some words for solution selections description
-
Built-in DSP processor
+- Realize various scene presets
- Sound processing functions such as reverb, echo, howling, noise cancellation, aviation, equalization, and pitch shifting
-
Optional control methods
+- IRremote control
- Coding switch
- Button control
-
Independent adjustment of microphone and music
+- Volume adjustment
- Effect adjustment
- Treble/alto/bass adjustment
- Input gain adjustment
-
Built-in 48V phantom switch control function
+ -
Comprehensive protective measures
+- Soft start protection
- Overvoltage protection
- Undervoltage protection
- Overload protection
- Short circuit protection
- Overheat protection
