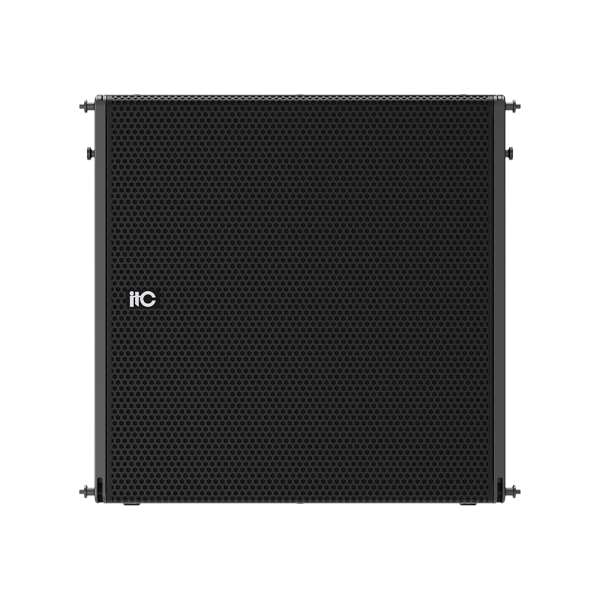

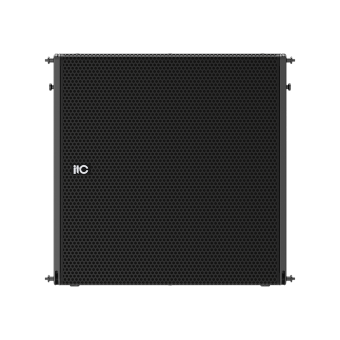

Linear Array Subwoofer KS-S218
KS Series high-end speakers are designed to deliver unparalleled sound quality and immersive audio experiences. The customized high-power passive subwoofer KS-S218 can provide powerful low-frequency energy to achieve shocking low-frequency effects. It is specially used for high-demand sound reinforcement systems. It is suitable for performances activities, stadiums, theaters, multipurpose halls and various high-end occasions.
-
Rated power 1600W
-
Nominal impedance 4Ω
-
Frequency range 28Hz-150KHz
-
Sensitivity 108dB (1M/1W)
-
Maximum SPL (rated/peak) 143dB/146dB
- Adopt two 18-inch ferrite subwoofers.
- The cabinet is made of 18mmimported birch; the surface adopts polyurea paint treatment, high-end and wear-resistant.
- Push-pull six-order band-pass structure, minimized volume, with hanging parts, support hanging and stacking installation; used with linear array main full-range speakers to form a linear array.
- Support forming a cardioid array to achieve ultra-low directivity control.
- Professional speaker sockets and plugs with good electrical characteristics.
| Model | KS-S218 |
| Rated power | 1600W |
| Peak power | 6400W |
| Nominal impedance | 4Ω |
| Frequency range | 28Hz-150Hz |
| Sensitivity | 108dB (1M/1W) |
| Maximum SPL (rated/peak) | 140dB/146dB |
| Woofer | 18″ (100mm voice coil) ×2 |
| Net weight | 83.9kg |
| Dimension (H×W×D) | 680×625×800mm |
Technical Specification
Some words for solution selections description
-
Two 18-inch ferrite subwoofers
+ -
Strong and wear-resistant cabinet
+- 18 imported birch
- Polyurea spray paint for the surface
-
Push-pull six-order band-pass structure
+ -
Used with linear array full-range speaker to form a linear array
+ -
Support forming a cardioid array
+Achieve ultra-low directivity control
-
Sockets and plugs with good electrical characteristics
+
