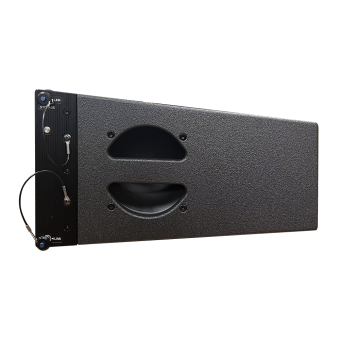

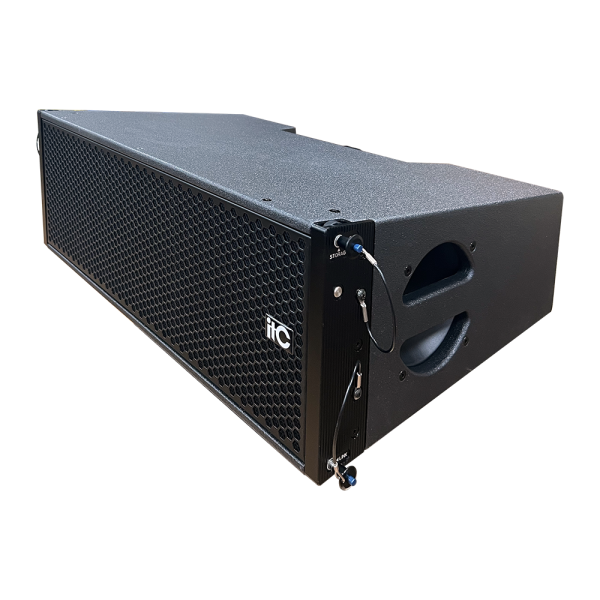

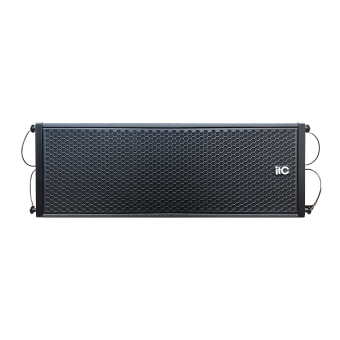

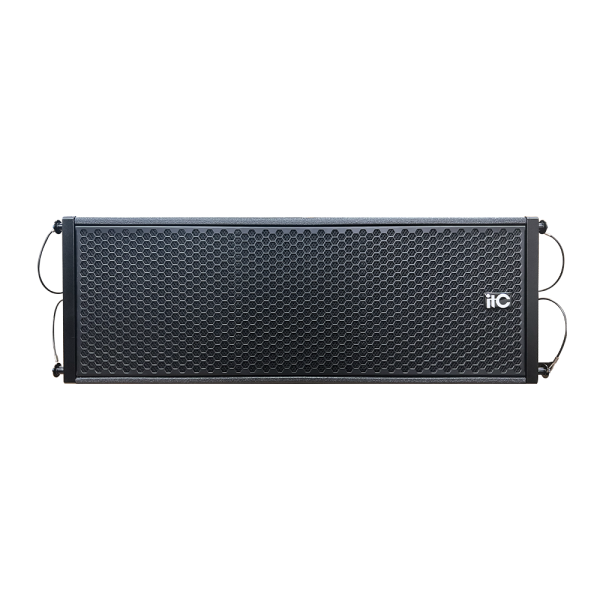

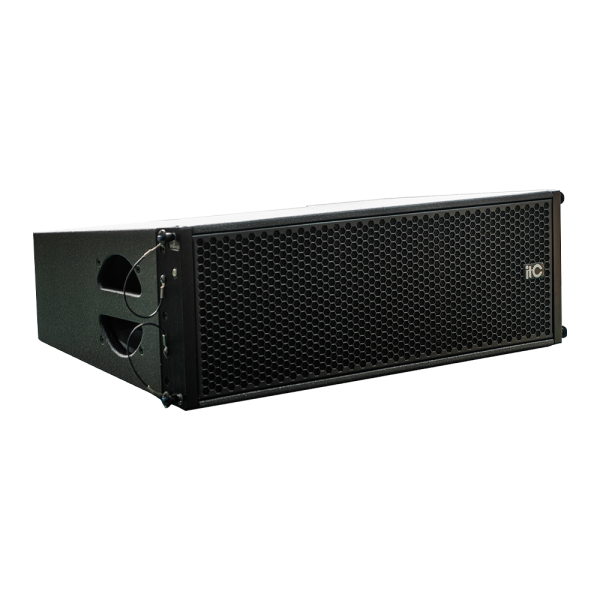

Linear Array Speaker KH-208
KS Series high-end speakers are designed to deliver unparalleled sound quality and immersive audio experiences. This speaker can work with the subwoofer to form a linear array. It is suitable for performances, theaters, auditoriums, banquet halls, multipurpose halls and various high-end occasions.
-
Rated power 600W
-
Nominal impedance 8Ω
-
Frequency range 50Hz-20KHz
-
Maximum SPL (rated/peak) 130dB/136dB
-
Coverage angle (-6dB) 120°(H) 10°(V)
- Adopt two 8-inch Italian imported neodymium magnetic woofers and a 3-inch Italian imported voice coil neodymium magnetic tweeter.
- The tweeter is specially designed to produce excellent sound wave output, with long sound projection distance, strong penetrating power, and wide coverage. With a horizontal constant symmetrical diffusion angle of 120°, all components in the box are arranged with left-right symmetrical dipoles on the central axis, so that they have a perfectly symmetrical diffusion direction.
- The cabinet is made of high-quality imported Russian birch wood, adopts precise CNC machining, polyurea spray paint, high-end and wear-resistant.

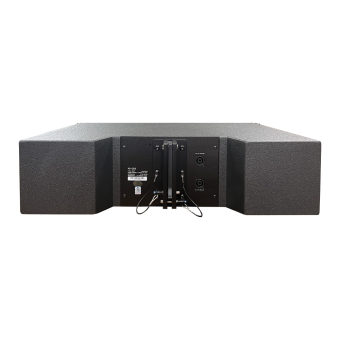

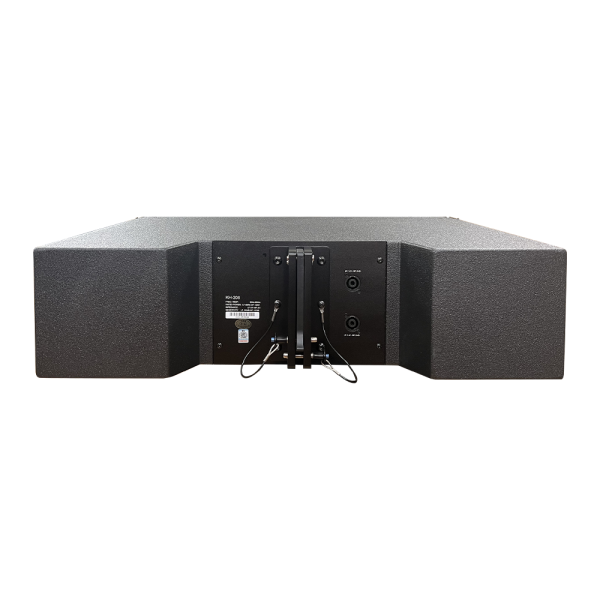

- Professional sockets and plugs with good electrical characteristics.

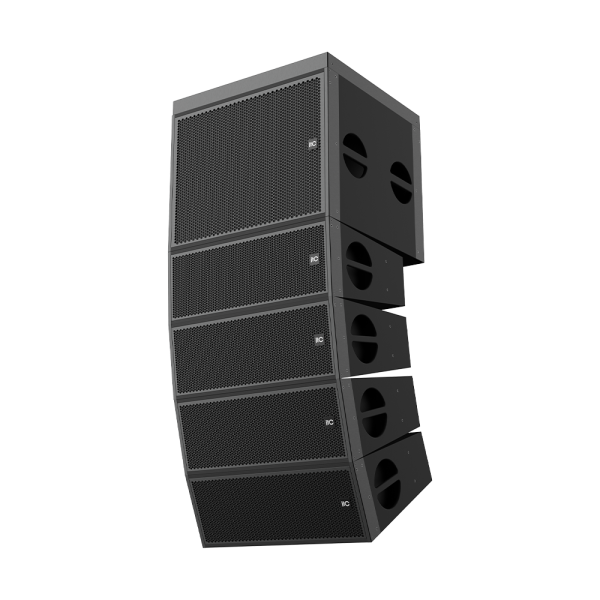

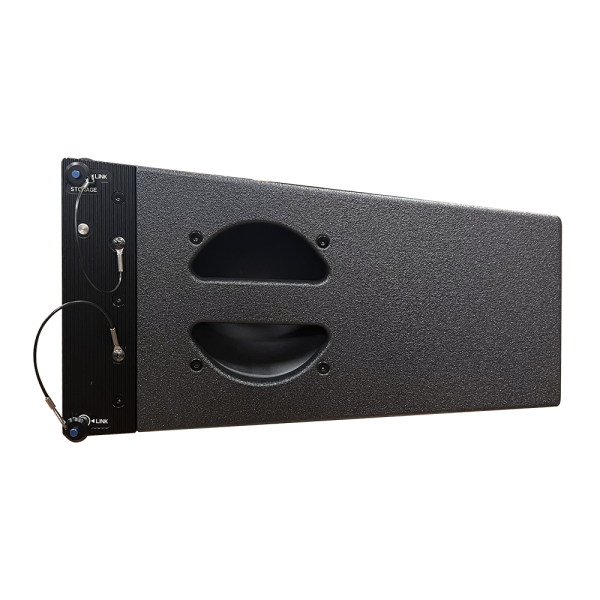

- The professional hanging system, carefully optimized hanging parts and acoustic design make it possible to form vertical linear array hanging with up to 24 speakers, the vertical coupling angle of speakers can be adjusted between 0° and 10°, step 1°.
| Model | KH-208 |
| Rated power | 600W |
| Peak power | 2400W |
| Nominal impedance | 8Ω |

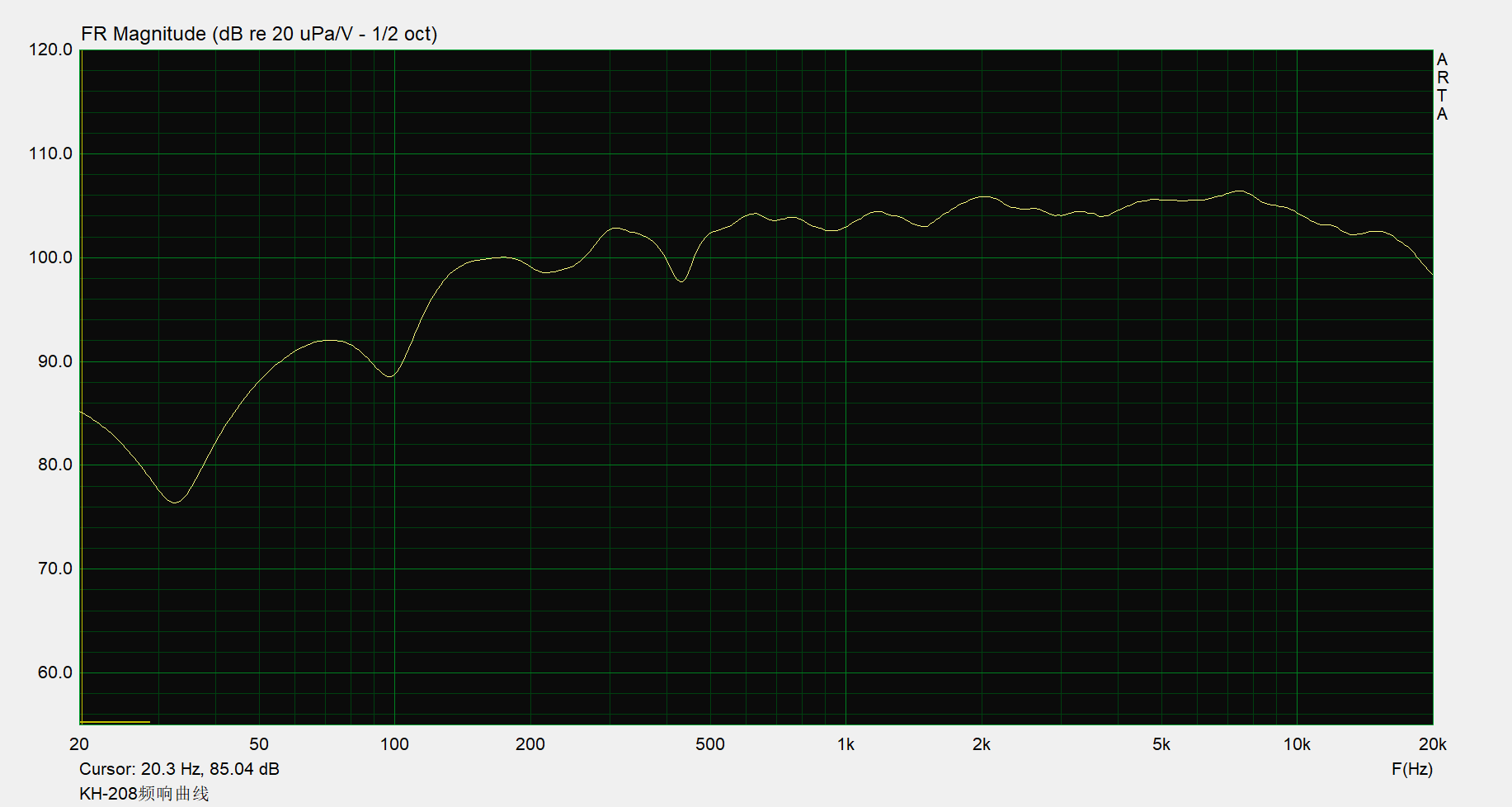

| Frequency range | 5 0Hz-20KHz |
| Sensitivity | LF: 102dB + HF: 107dB (1M/1W) |
| Maximum SPL (rated/peak) | 130dB/136dB |
| Woofer | 8″ × 2 |
| Tweeter | 3″ compression drive × 1 |

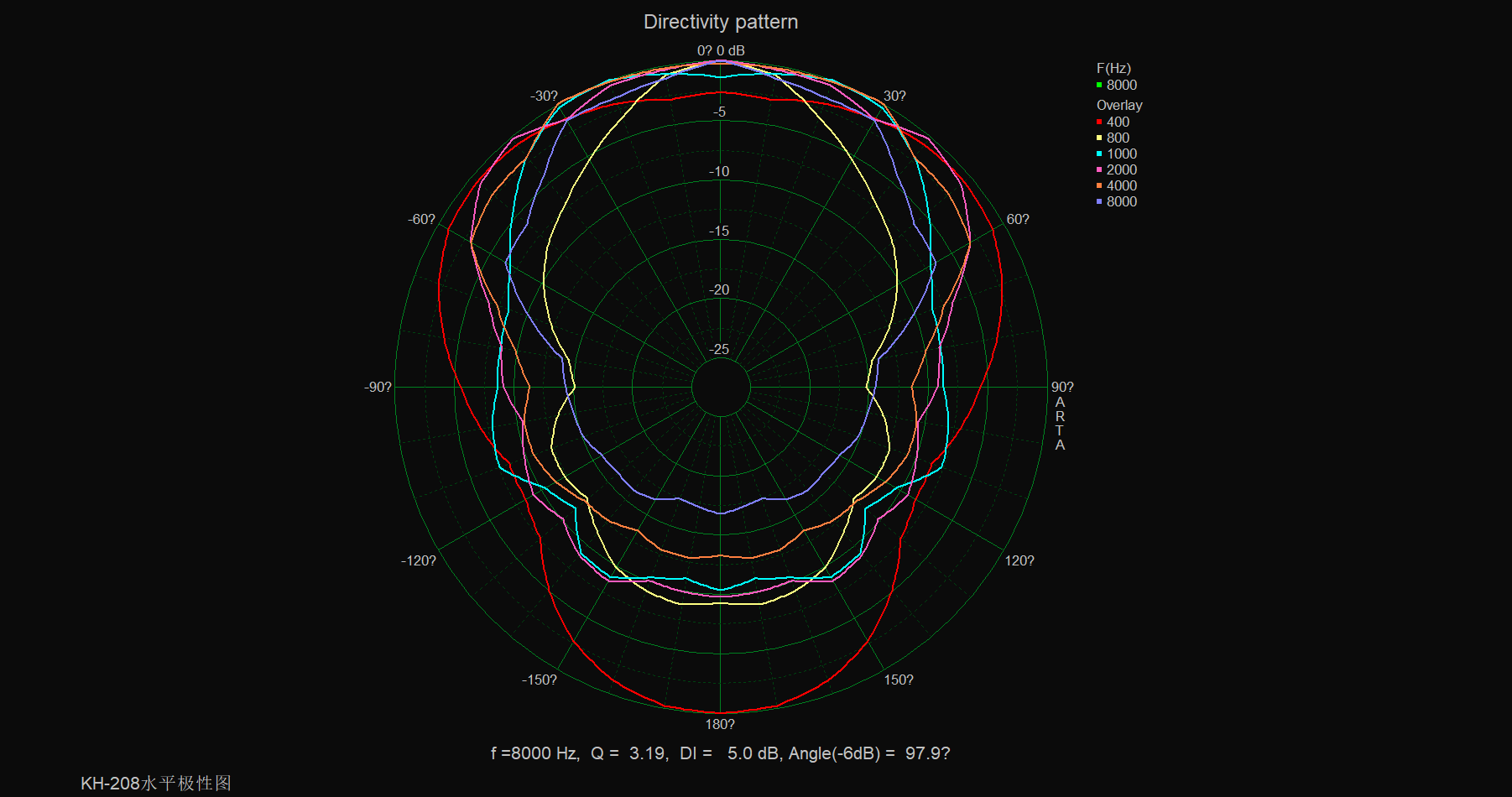

| Horizontal coverage angle (-6dB) | 120° |

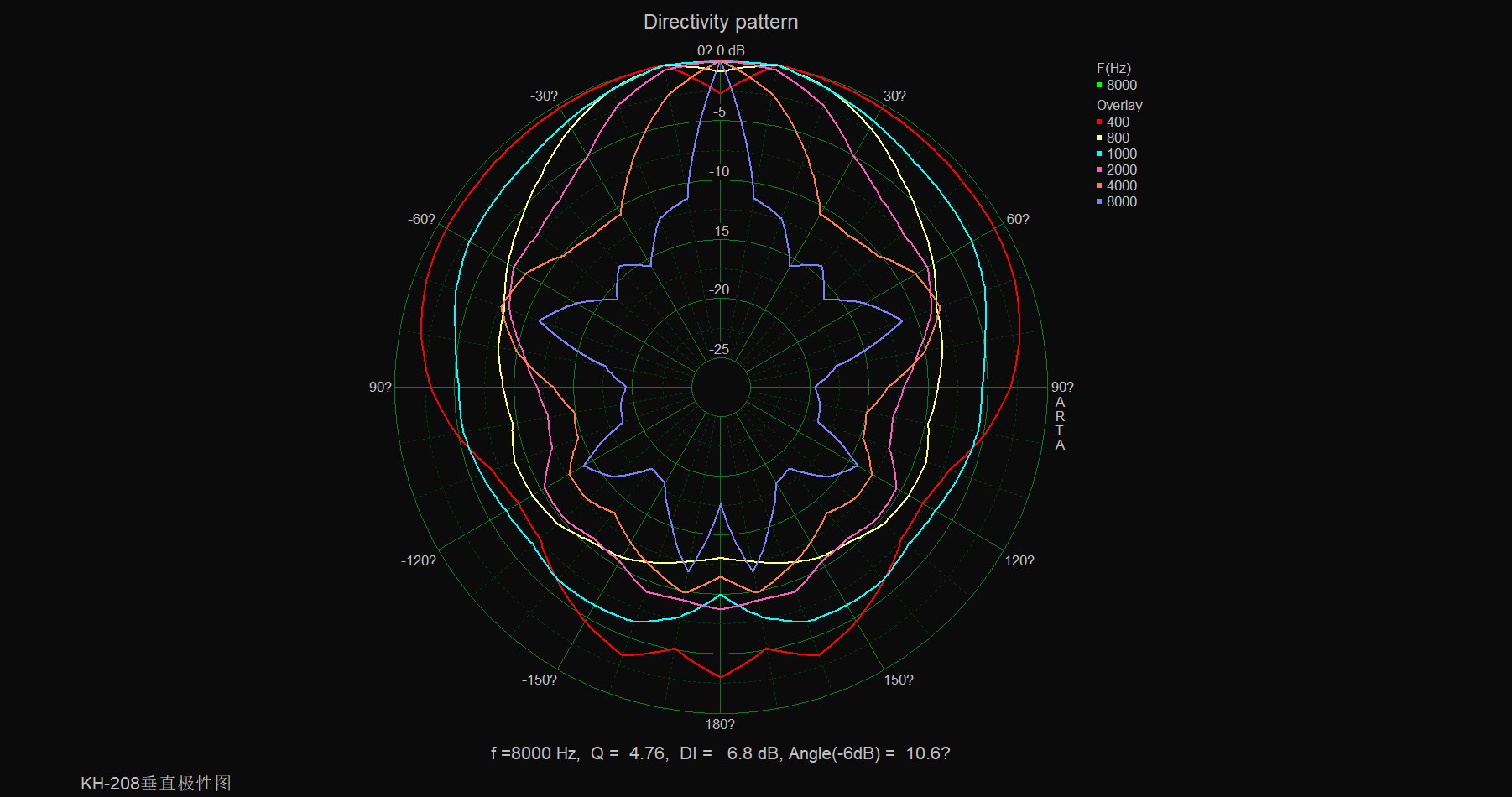

| Vertical coverage angle (-6dB) | 10° |
| Net weight | 27.5kg |
| Dimension (H×W×D) | 250×705×450mm |
Technical Specification
Some words for solution selections description
-

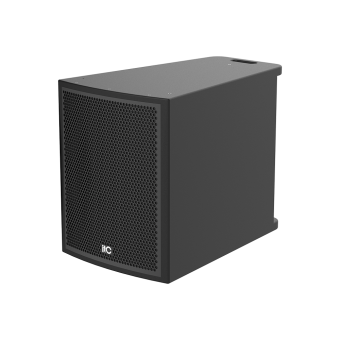

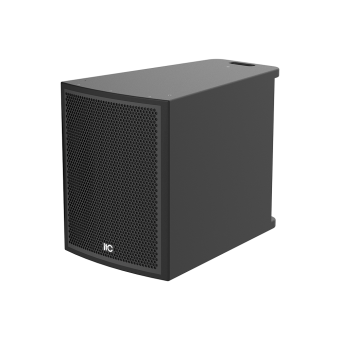

Band-pass subwoofer with compact structure and high performance
+ -
