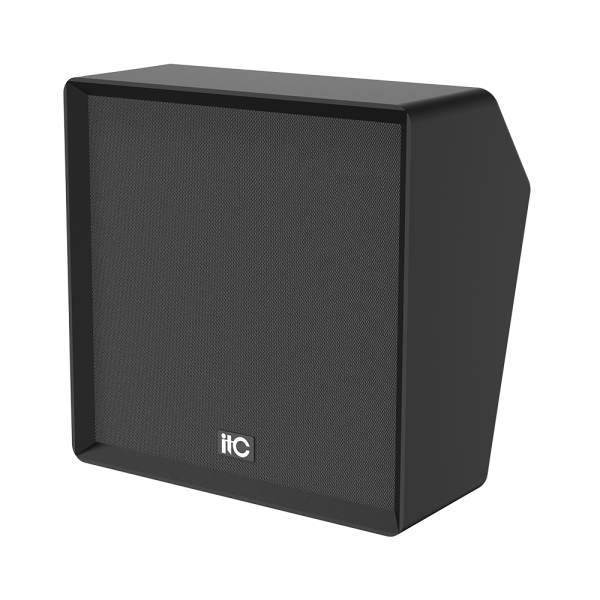

Professional Full Range Speaker KF-Y10
KF-Y Series Theatre Speakers feature exceptional audio clarity, dynamic range, and precise sound imaging, enhancing the cinematic experience with rich and nuanced sound. This speaker is used in public cinemas, private cinemas and various high-end occasions.
-
Rated power 250W
-
Nominal impedance 8Ω
-

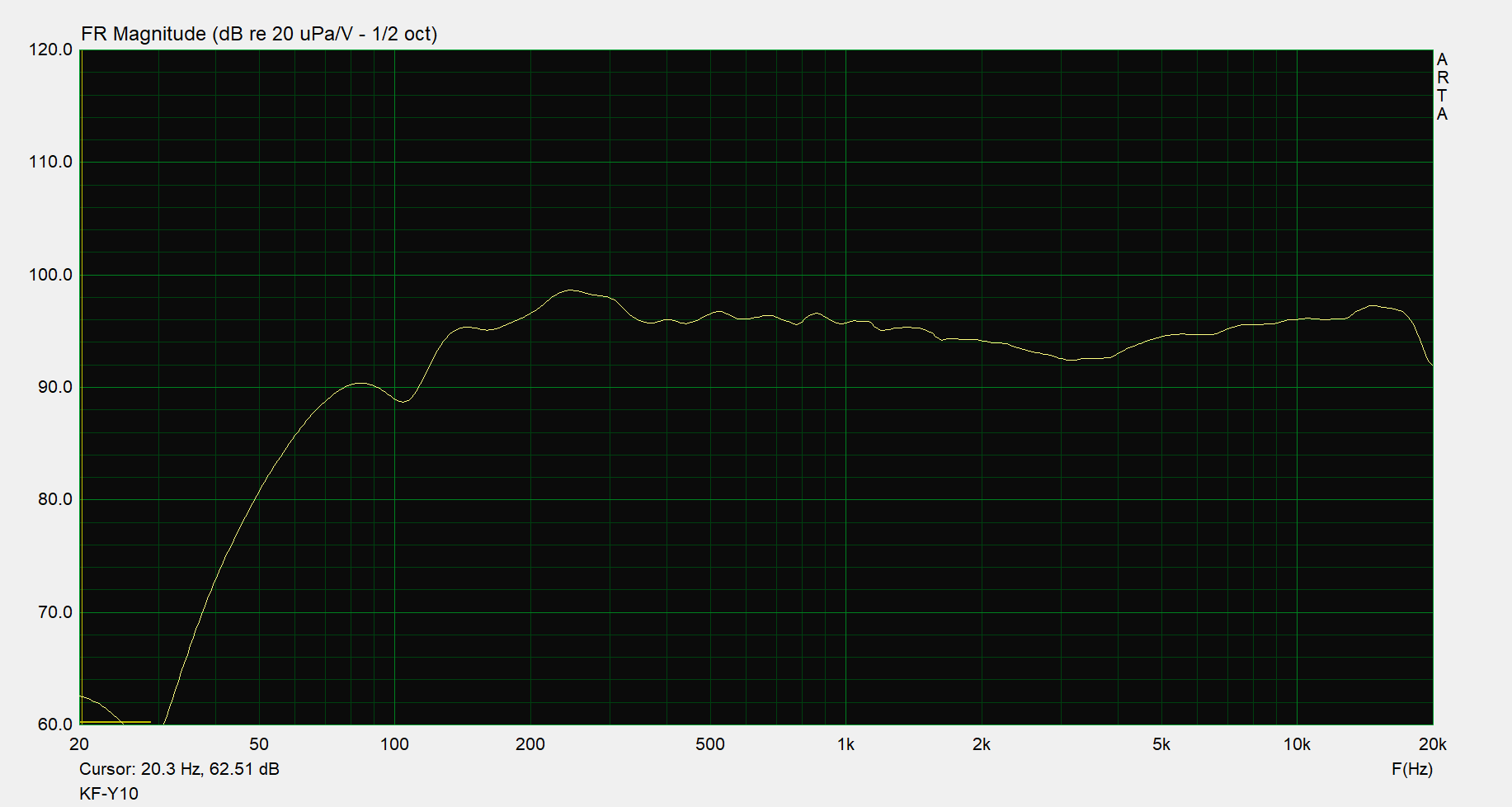

Frequency range 65Hz-18.5KHz
-
Maximum SPL (rated/peak) 119dB/125dB
-

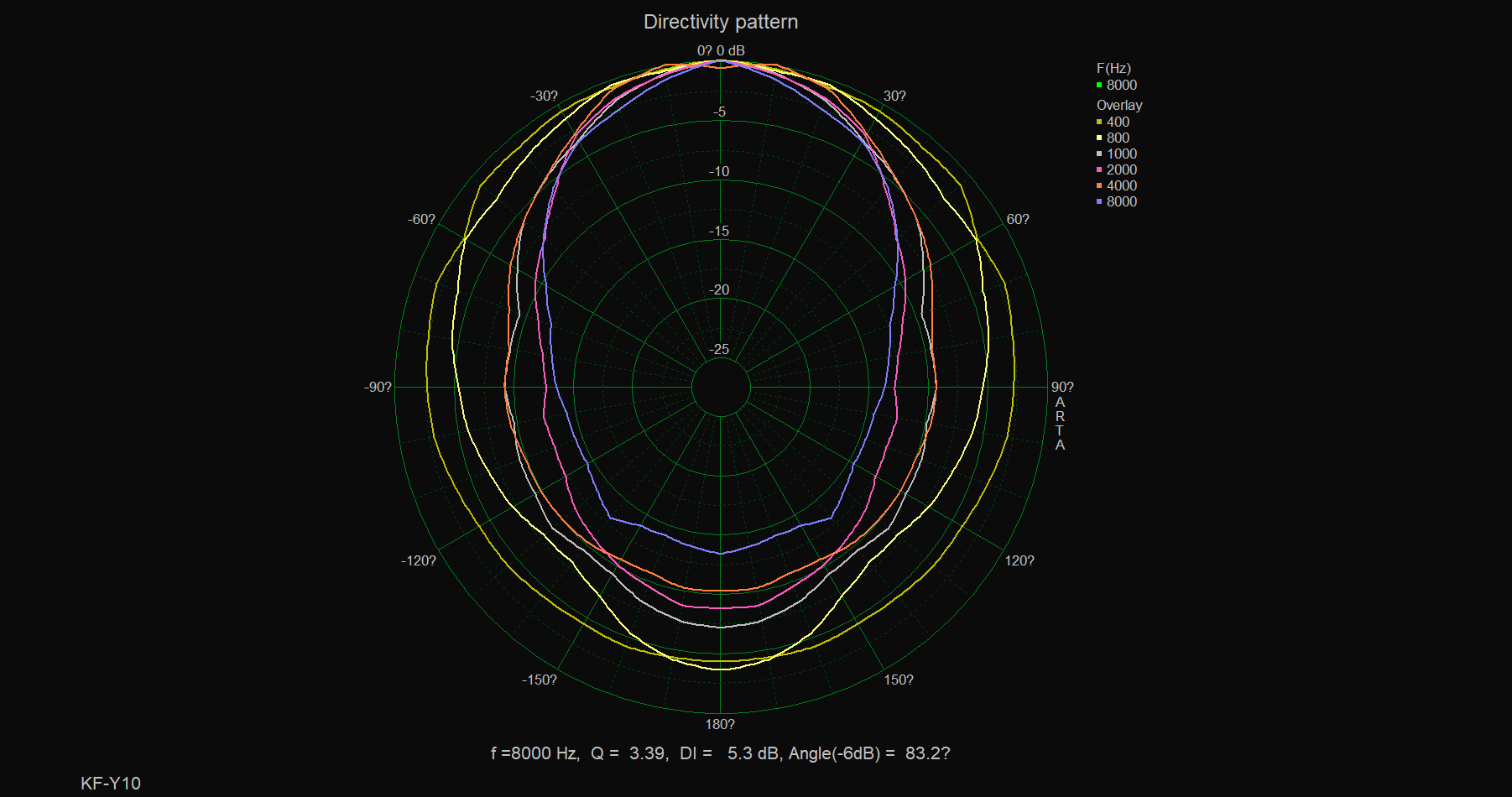

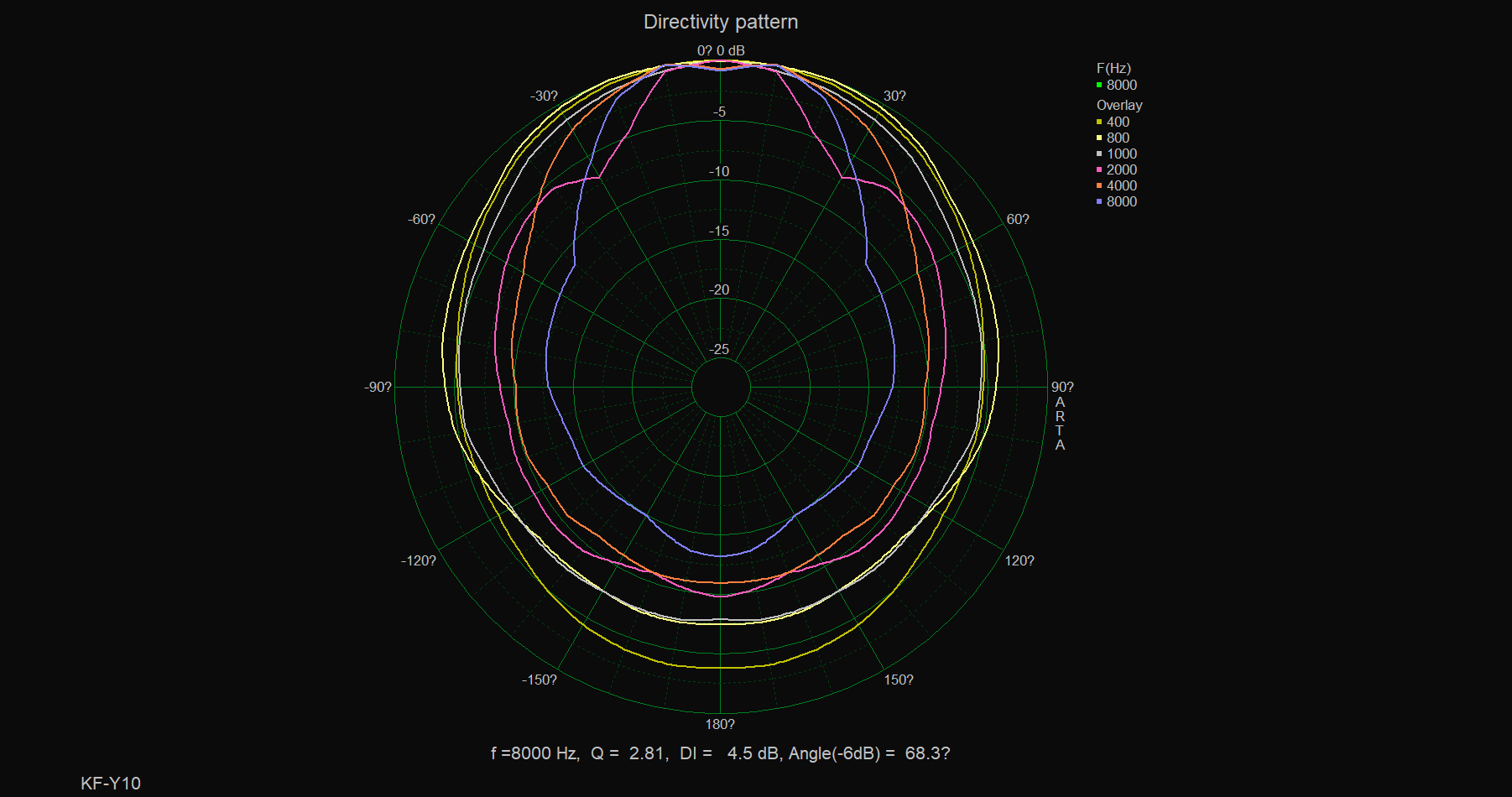

Coverage angle (-6dB) 95°(H) 45°(V)
- Using a 10-inch woofer and a 1.4-inch tweeter, it can deliver the perfect sound quality.

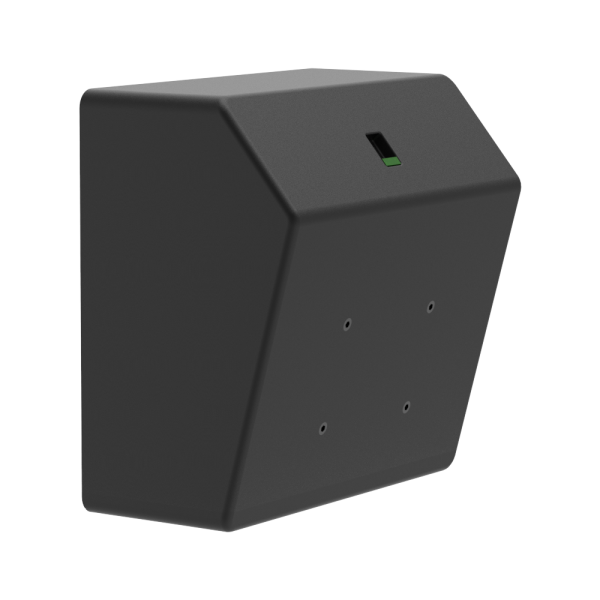

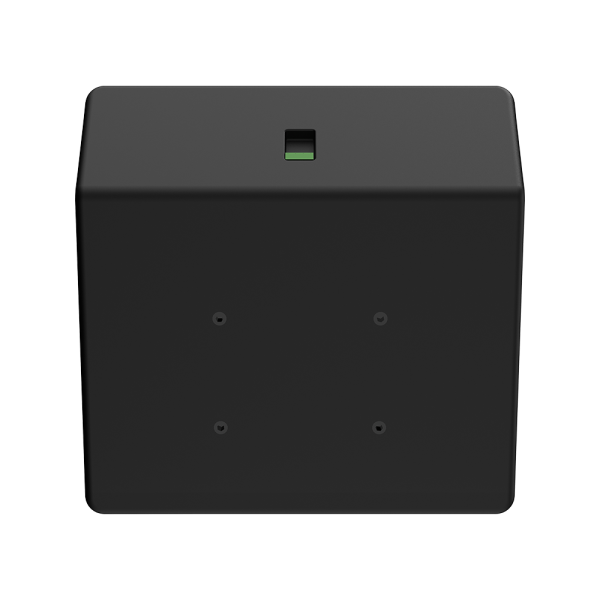

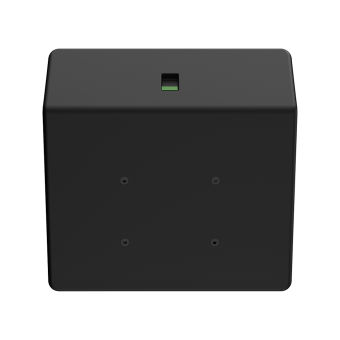

- The trapezoid cabinet is made of 15mm plywood and adopts water-based paint treatment, high-grade and wear-resistant.

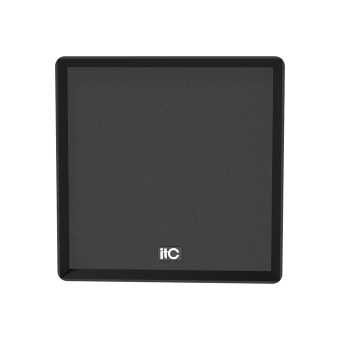

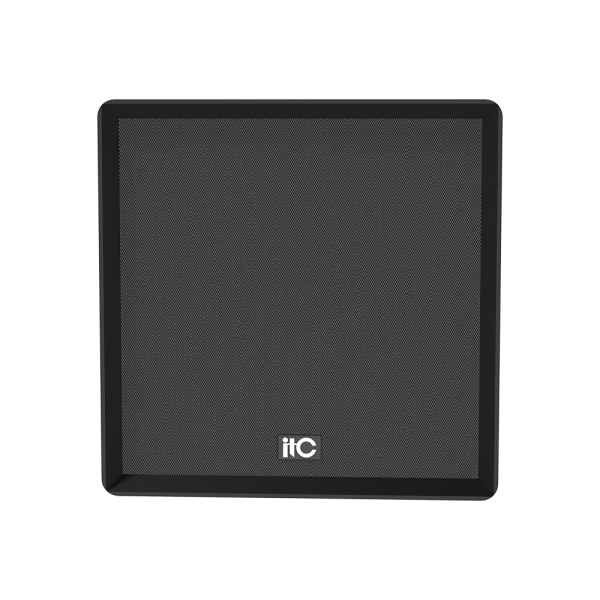

- Adopt a special mesh cover with small holes, neat and beautiful, increasing the diffusion of the sound field and wide directivity.
- The frequency divider has been adjusted by professional instruments so that the speaker has a better dynamic range and brings comfortable listening enjoyment.
- Come with installation accessories, easy to install.
- Adopt high-grade Phoenix plug, high quality, high-temperature resistance, impact resistance, long service lifespan and excellent electrical performance.
| Model | KF-Y10 |
| Rated power | 250W |
| Peak power | 1000W |
| Nominal impedance | 8Ω |
| Frequency range | 65Hz-18.5KHz |
| Sensitivity | 95dB (1M/1W) |
| Maximum SPL (rated/peak) | 119dB/125dB |
| Woofer | 10″ woofer × 1 |
| Tweeter | 1.4″ tweeter × 1 |
| Coverage angle (-6dB) | 95°(H) 45°(V) |
| Net weight | 12.4kg |
| Dimension (H×W×D) | 460×340×270mm |
Technical Specification
