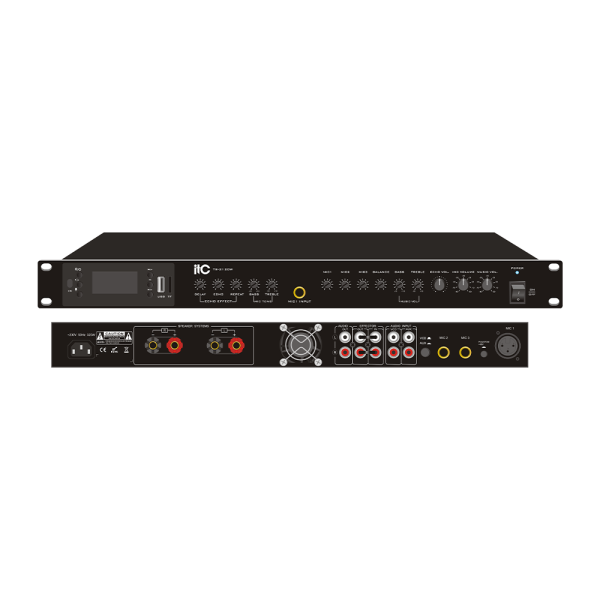

Professional Amplifier TS-2120W
As a crucial component in professional sound system, itc professional amplifier plays a pivotal role in delivering high-fidelity sound and reproducing audio sources with exceptional accuracy and force, effectively filling venues with rich, clear, and dynamic sound and achieving an unparalleled listening experience. It is suitable for medium and large theaters, outdoor performances, stadiums, nightclubs, entertainment venues, bars, banquet halls, concert halls and so on.
-
Rated power 4Ω×2: 2×120W 8Ω×2: 2×60W
-
Input sensibility&impedance MIC1/2/3: ±5mV/600Ω (unbalanced input) AUX: 350mV/10KΩ (unbalanced input) VCD: 350mV/10KΩ (unbalanced input) EFFECTOR IN: 350mV/10KΩ (unbalanced input)
-
Frequency response AUX/VCD: 20Hz(±3dB)-20KHz(±3dB) MIC: 50Hz(±3dB)-16kHz(±3dB)
-
SNR MIC: ≥65dB Music: ≥70dB
- Two channels of audio input with switching function.
- Three channels of MIC input with independent gain adjustment.
- MIC 1 supports dual interface input and phantom power functions.
- Professional digital echo delay circuits make the sound natural and rich.
- MP3 player with SD/USB interface, support Bluetooth playback function and digital tube display function.
- MP3 recording function is convenient for users to record audio.
- 60W×2/120W×2power output can connect to two groups of external 8Ω speakers.
- Adapt hidden adjustments on volume and effect to avoid wrong operation.
- Forced fan cooling meets the need for long-hour
- Switched power supply technology, with high efficiency; soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
- With over-voltage protection, under-voltage protection, over-temperature voltage limit, over-temperature shutdown, over-current voltage limit, over-current shutdown, DC protection, output short circuit protection, linear temperature control fan.
- Class D amplifier design, higher efficiency, light in weight.
Model | TS-2120W |
Rated power | 2 x 120W |
Output impedance | 4~8Ω |
Input sensibility&impedance | MIC1/2/3:±5mV/600Ω (unbalanced input) |
AUX: 350mV/10KΩ (unbalanced input) | |
VCD: 350mV/10KΩ (unbalanced input) | |
EFFECTOR IN: 350mV10KΩ (unbalanced input) | |
Front output | EFFECTOR OUT: 350mV470Ω |
AUDIO OUT:1V±50mV/470Ω | |
Mic volume | Bass:±10dB at 100Hz, |
Treble:±10dB at 10KHz | |
Music volume | Bass:±10dB at 100Hz, |
Treble:±10dB at 10KHz | |
Audio processor | DELAY: 80ms-240ms; ECHO : 1-12, REPEAT: 0.1s-2s |
Frequency response | AUX,VCD: 20Hz(±3dB)–20KHz(±3dB) |
MIC: 50Hz(±3dB)–16kHz(±3dB) | |
SNR | MIC: ≥65dB, Music: ≥70dB |
THD | ≤1% at rated power |
Indicator light | Power indicator |
Cooling method | Fan cooling |
Protection method | Over temperature protection, short circuit protection |
Power supply | ~220V 50Hz |
Dimension | 484x209x44mm(L×W×H) |
Fuse | T3.15A-250V-5×20 |
Power consumption | 300W |
Weight | 3.2Kg |
Technical Specification
Some words for solution selections description
-
Latest class-D amplifier design
+Low distortion and high efficiency
-
Two channels of audio input with switching function
+ -
Three channels of MIC input with independent gain adjustment
+ -
MIC 1 supports dual interface input and phantom power function
+ -
Professional digital echo delay circuit for natural and rich sound
+ -
MP3 recording function to record and play audios
+ -
Soft starter
+- Prevent absorbing large currents when starting up and interfering with other devices
- Effectively suppress power harmonics
-
Comprehensive protective measures
+- Over-voltage protection
- Under voltage protection
- Over-temperature voltage limit
- Over temperature shutdown
- Over-current voltage limit
- Over-current shutdown
- DC protection
- Output short circuit protection
- Linear temperature control fan
