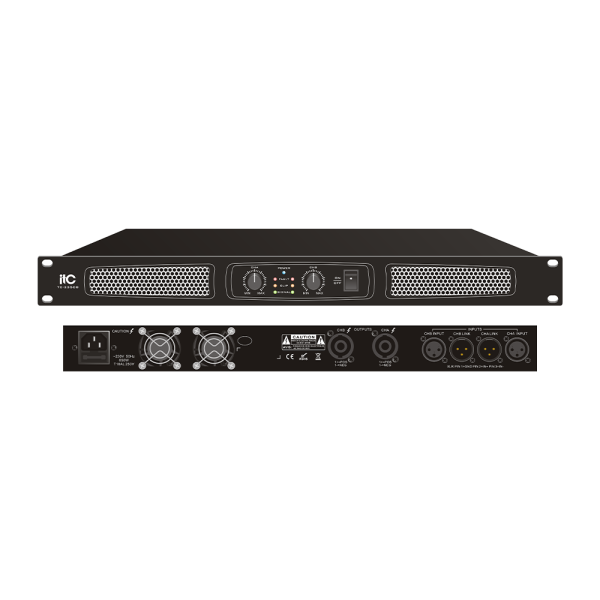

Professional Amplifier TC-2350B
-
Output power Stereo@8Ω: 350W×2 Stereo@4Ω: 600W×2
-
Input sensitivity 2.2dBU(1V)
-
Input impedance 10KΩ
-
Frequency response (@1W power) 20-20KHz/±1dB @8Ω
-
SNR (A-weighted) ≥93dB
- 1U cabinet design, small in size and light in weight.
- Adopt the latest class D digital amplifier design, with low distortion and high efficiency.
- Adopt switched power supply technology, with high efficiency, to effectively suppress the harmonics of the power supply, meeting the EU green power supply standard.
- Adopt smart peak clipper to control the power module and speaker system to work in a safe range.
- Designed with standard XLR input interface and LINK output interface, convenient for different user needs.
- Support soft start to prevent absorbing large currents from the power grid during startup and interfering with other electrical equipment.
- Smart control forced heat dissipation design, low fan noise and high heat dissipation efficiency.
- Support three optional modes: mono, stereo, and bridge.
- Support overvoltage protection, Undervoltage protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan and so on.
| Model | TC-2350B |
| Output power | Stereo@8Ω: 350W×2
Stereo@4Ω: 600W×2 |
| Input sensitivity | 2.2dBu(1V) |
| Input impedance | 10KΩ |
| Frequency response (@1W Power) | 20Hz-20KHz/±1dB @8Ω |
| THD+N (@1/8 power) | ≤0.01% |
| Isolation (@1KHz) | ≥80dB |
| Damping coefficient(@1KHz) | ≥200@ 8 ohms |
| SNR (A-weighted) | ≥93dB |
| Input voltage | ~220V/50Hz |
| Overall power consumption | 200W |
| Dimension (L*W*H) | 484*206*44 |
| Weight | 3.8kg |
| Notes:
Output power: according to CEA-2006-B/CEA-490-A standard using 20ms pulse 1kHz sine wave measured under 1% total harmonic distortion. Overall power consumption: according to GB4943.1-2022 test method: measured under 1kHz sine wave rated load 1/8 power conditions. |
|
Technical Specification
Some words for solution selections description
-
Latest class-D amplifier design
+Low distortion and high efficiency
-
Switched power supply with high efficiency
+- Effectively suppress power harmonics
- Meet the EU green power supply standard
-
Intelligent peak clipper
+Control the power module and speakers to work in a safe range
-
Soft starter
+Prevent absorbing large currents when starting up and interfering with other devices
-
Intelligent forced heat dissipation
+Low fan noise and high dissipation efficiency
-
Comprehensive protective measures
+- Soft start protection
- Overvoltage protection
- Undervoltage protection
- Overload protection
- Short circuit protection
- Overheat protection
