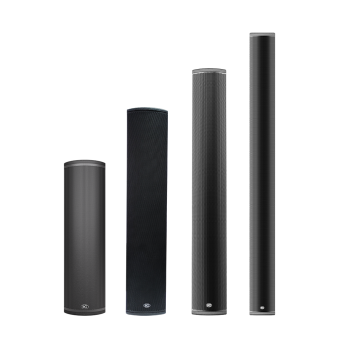

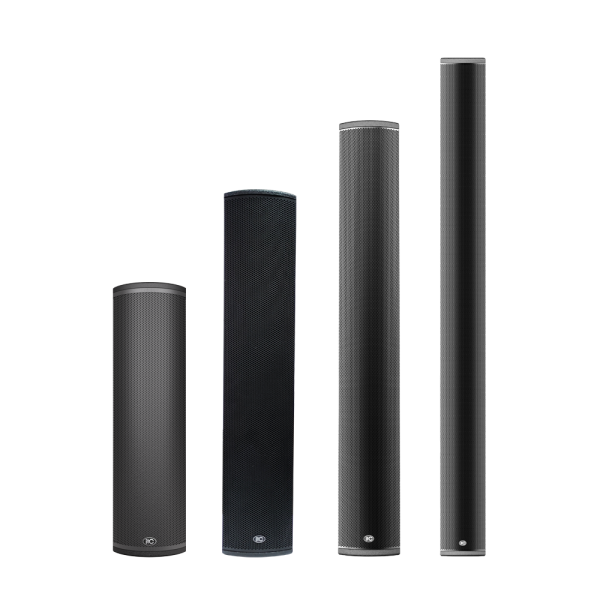

Professional Speaker TS-403C/TS-603C/TS-803C/TS-1203C

Category: Speaker Conference Loudspeaker Series
itc column speakers are designed to deliver exceptional audio performance, providing precise vertical directivity and a rich, immersive listening experience. With a slim and elegant appearance, they can be used in various small and medium conference rooms, lecture halls, auditoriums, government meeting rooms, multipurpose halls, theaters, stadiums and outdoor performances, etc.
Tags:,
  • 1.Rated power: 100W / 200W / 300W / 400W
  • 2.Nominal impedance: 8Ω / 6Ω / 4Ω / 6Ω
  • 3.Frequency range: 60Hz-20kHz
  • 4.Max SPL: 108dB / 115dB / 126dB / 130dB

The column speaker features a slim and elegant appearance with multiple 3-inch full-range units arranged in a vertical line array, forming precise vertical directivity that effectively suppresses ceiling and floor reflections and focuses sound on the listening area. High-cost performance and convenient installation make it ideal for conference rooms, training rooms, lecture halls, multipurpose halls and other venues. Optional brackets support wall mounting, ceiling mounting or floor placement with adjustable tilt angle, easily achieving the best sound projection angle.

Model TS-403C TS-603C TS-803C TS-1203C
Type Linear full-range speaker Column speaker Column speaker Column speaker
Rated power 100W 200W 300W 400W
Peak power 200W 800W 1200W 1600W
Max SPL (rated/peak) 108dB 115dB 120dB/126dB 124dB/130dB
Nominal impedance (±20%) 8Ω 6Ω 4Ω 6Ω
Frequency range (-10dB) 80Hz-20kHz 80Hz-20kHz 70Hz-20kHz 60Hz-20kHz
THD – 0.293%@265Hz – –
Speaker unit 3″×4 3″×6 3″×8 3″×12
Horizontal coverage angle (-6dB) 100° 110° 110° 110°
Vertical coverage angle (-6dB) 90° 100° 100° 100°
Dimensions (H×W×D) 550×152×203mm 760×152×203mm 970×152×203mm 1500×152×203mm
Net weight 6.7kg 9.8kg 12.9kg 20.24kg

Technical Specification

Some words for solution selections description

  • Precise vertical directivity

    +

  • Spliced array design

    +

  • Flexible installation

    +
