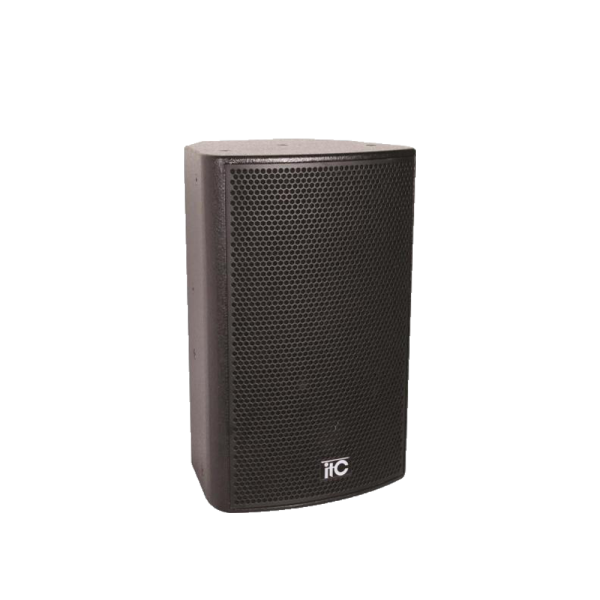

Professional Speaker TS-610P/TS-612P/TS-615P
itc professional speakers are designed to deliver exceptional audio performance, providing a rich and immersive listening experience. This speaker works with the audio processor to form a set of high-end entertainment and conference professional sound system with outstanding vocal performance. It is suitable for various high-end conference rooms and multipurpose halls as the main speaker or auxiliary speaker.
-
Rated power 300W / 350W / 450W
-
Nominal impedance 8Ω / 4Ω
-
Frequency response 55Hz / 50Hz / 45Hz -20KHz
-
Sensitivity 98dB / 99dB / 100dB (1M/1W)
-
Maximum SPL (rated/peak) 123dB/129dB;124dB/130dB;127dB/133dB
- Adopt a mid-woofer and an annular polyethylene diaphragm compressed
- 15mm birch housing, lightweight, wear-resistant spray paint treatment, and dust-proof net cotton inside.
- The frequency divider in precise design is used to optimize the local MF performance.

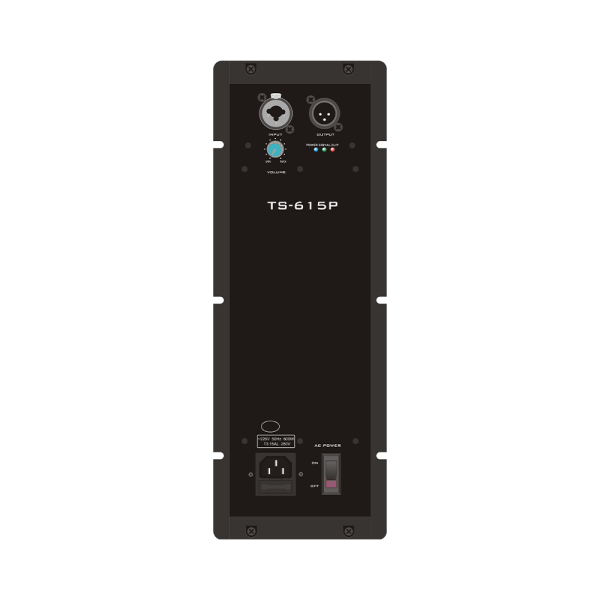

- The entire series is equipped with efficient high-power amplifier modules and powerful DSP audio processor. Through different applications of the system, it supports comprehensive parameter settings, including 6 parameter equalization, frequency division, delay, and limit.
- Multiple screwhoisting holes, a pole socket with a diameter of 35mm, and various installation methods.
| Model | TS-610P | TS-612P | TS-615P |
| Impedance | 8Ω | 4Ω | 4Ω |
| Frequency response | 55Hz-20KHz | 50Hz-20KHz | 45Hz-20KHz |
| Rated power | 300W | 350W | 450W |
| Peak power | 1200W | 1400W | 1800W |
| Sensitivity | 98dB/W/M | 99dB/W/M | 100dB/W/M |
| Max SPL(rated/peak) | 123dB/129dB | 124dB/130dB | 127dB/133dB |
| Coverage angle | (H)80° (V)60° | (H)80° (V)60° | (H)80° (V)60° |
| Tweeter | 1.4″ compressed tweeter ×1 | 1.7″ compressed tweeter ×1 | 1.73″ compressed tweeter ×1 |
| Woofer | 10″ woofer ×1 | 12″ woofer ×1 | 15″ woofer ×1 |
| Line input sensitivity | 0dB | 0dB | 0dB |
| Dimension (H×W×D) | 510×325×300mm | 560×360×380mm | 660×435×430mm |
| Weight | 18.5Kg | 21.8Kg | 28.8Kg |
| Power supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
| Power consumption | 240W | 280W | 360W |
