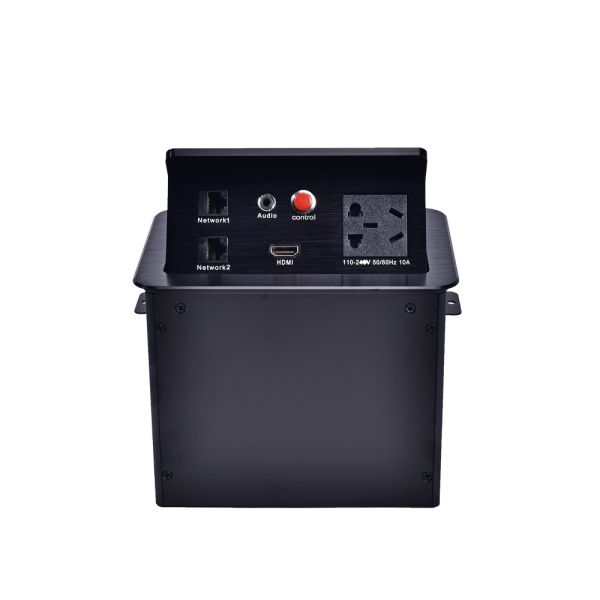

Desktop Socket TS-18C

The pop-up desktop socket can connect audio, video, computer video, network, telephone, power supply and VGA signal cable to the computer, which simplifies connectivity, reduces cable clutter, and enhances productivity and efficiency.
  • Product size 175×130×145mm
  • Pop-up method Air-supported pole
  • Elevation angle 45 degrees (accord with engineering principles)
  • Configuration port Multi-function power supply×1, network×2, 3.5 audio×1, HDMI×1, video switching×1
  • The socket adopts all-aluminum structure, high-quality aluminum and CNC engravingcraft. The whole socket panel is a one-piece CNC molding of aluminum alloy, which is neat and elegant.
  • The surface of the device is anodized looks bright and can be sandblasting, wire-drawing, etc. And the color can be customized.
  • The information module port adopts standard modules, with strong signals and good quality.
  • The information port adopts high-grade configuration and is closely connected to the desktop.
  • It is mainly used for manager tables, conference tables and other office furniture.
  • 1 video switching button, can work with the central control matrix to realize video switching.
Model TS-18C
Power supply AC 220V  50-60/HZ
Pop-up method Air-supported pole
Elevation angle 45 degrees, fully accord with engineering principles
Overall weight 2.0Kg
Product size 175×130×145mmm
Box size 166×122×140mm
Desktop opening size 166×122mm(through hole, recommended to open hole according to the actual product)
Environment conditions -20℃~50℃   humidity ≤70%, no condensation
Configuration port One multi-function power supply, two network, one 3.5 audio, one HDMI, one video switching

Technical Specification

Some words for solution selections description

  • All-aluminum structure with CNC engraving craft

    +
  • Hidden design makes the surface neat and beautiful

    +
  • Anodic oxidation treatment with high quality

    +
  • Adopt standard modules for strong signal

    +
  • Work with central control matrix to realize video switching

    +
  • Note

    +
    • Avoid water seepage and knocking.
    • Not suitable for outdoor and ground installation.
    • Ground wire is required.
