Next-Gen Audio Power Density: Exploring the Engineering Behind 1U Class D Professional Digital Power Amplifiers

The Paradigm Shift in Commercial Audio Reinforcement

In modern commercial sound reinforcement, space efficiency, energy sustainability, and uncompromised acoustic performance are no longer mutually exclusive. As system integrators and audio engineers move away from bulky, thermally inefficient Class AB and Class H topologies, 1U Class D digital professional power amplifiers have become the industry benchmark.

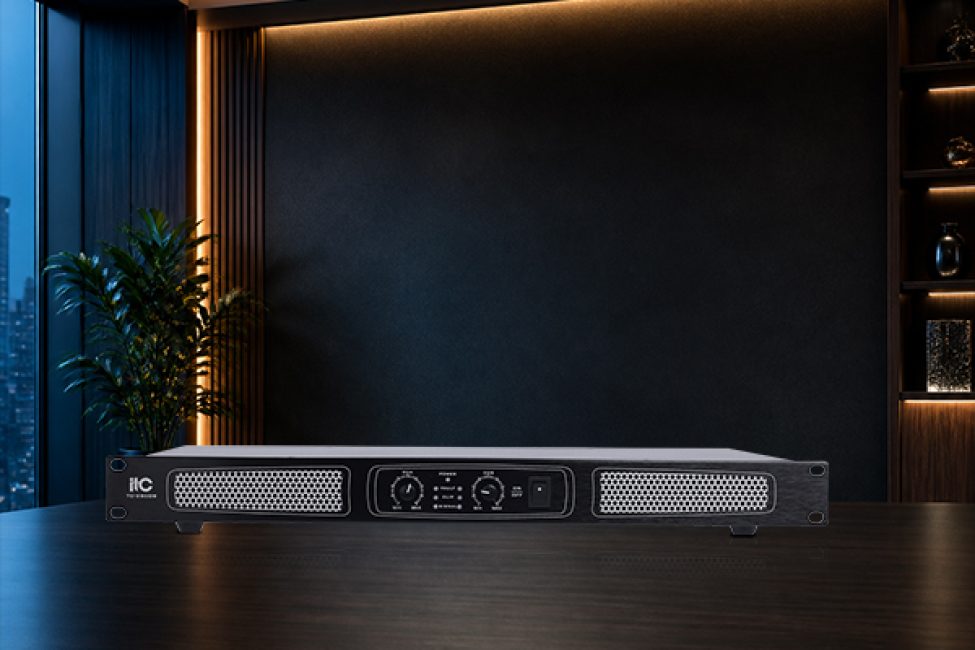

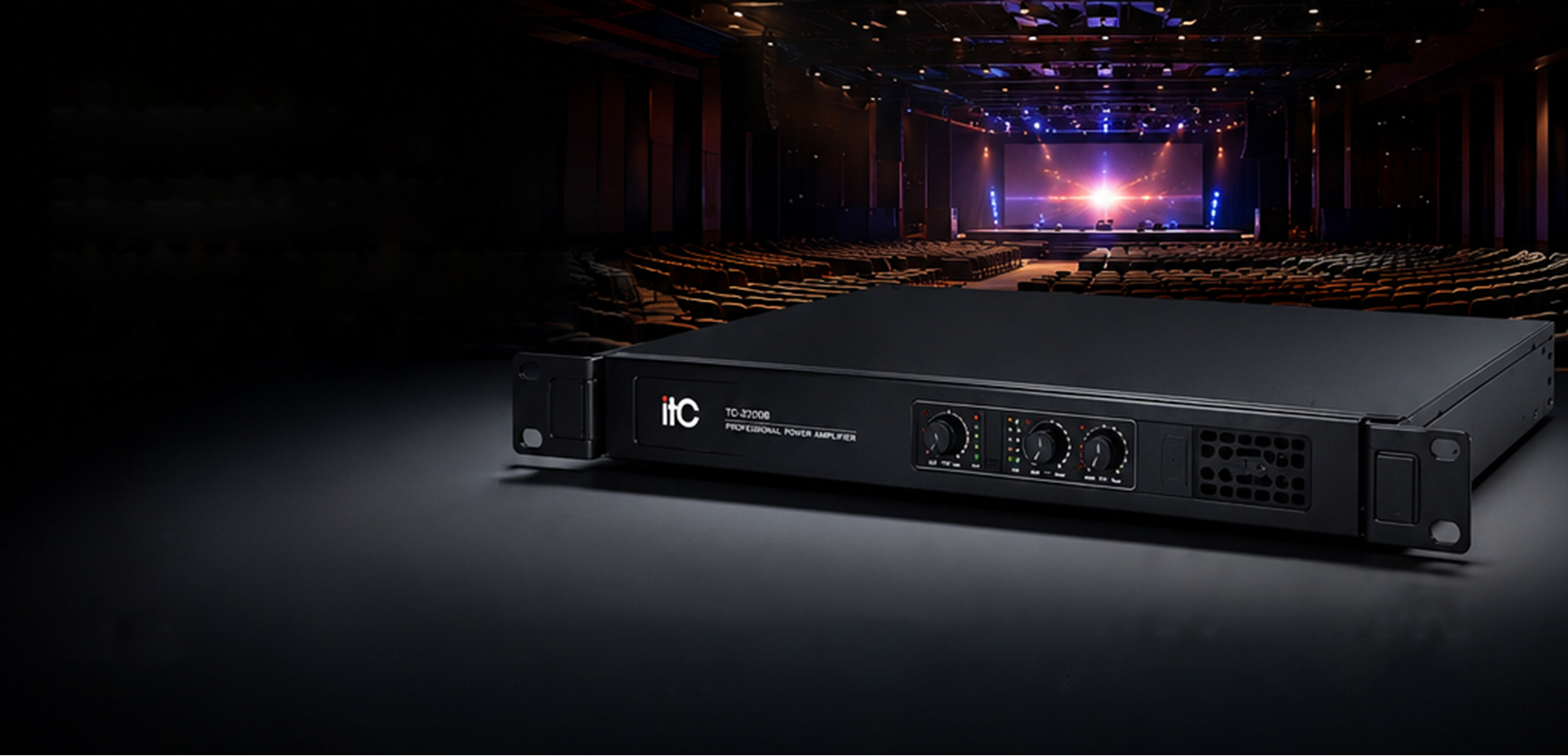

Leading this technological evolution is the itc TC-2200B, an ultra-compact 1U rack-mount digital power amplifier designed for high-demand applications including lecture halls, multi-purpose conference rooms, chapels, and training facilities. Engineered with active clamp switching power supply (SMPS) technology and high-frequency PWM modulation, the TC-2200B sets a new standard for power density, power efficiency, and acoustic purity.

Core Technological Breakthroughs of TC-2200B

1. High-Frequency Modulation & MSF Technology

Traditional digital power amplifiers often face challenges regarding high-frequency distortion and electromagnetic interference (EMI). The TC-2200B addresses this with an exclusive Modulation of Stabilized Frequency (MSF) platform operating at a carrier modulation frequency of up to 420 kHz.

• Ultra-Low Distortion: Achieves a Total Harmonic Distortion plus Noise (THD+N) of ≤0.01% @ 1/8 rated power.
• Exceptional Dynamic Range: Delivers an A-weighted Signal-to-Noise Ratio (SNR) of ≥105 dB, producing pure, crystal-clear high notes and precise acoustic imaging.
• Damping Factor Excellence: Boasts a damping coefficient of ≥2000(@ 8 Ω, 1 kHz), ensuring tight, transient control over loudspeaker woofer excursion.

2. Active Clamp Switching Mode Power Supply (SMPS) & Energy Efficiency

Equipped with an advanced Active Clamp Switching Power Supply combined with Electric & Magnetic Field Blended (E&MB) topology, the TC-2200B delivers over 95% power conversion efficiency. Compared to legacy Class H amplifiers (operating at roughly 60% efficiency), Class D green energy design provides key operational benefits:

• Low Thermal Dissipation: Eliminates massive heatsinks and minimizes HVAC cooling requirements in equipment racks.
• Lightweight 1U Form Factor: Weighing just 2.96 kg and measuring 484 mm × 209 mm × 44 mm, it dramatically cuts freight, handling, and integration costs.
• Soft-Start Circuitry: Prevents high-current inrush during power-on, protecting electrical grids and delicate line gear.

Comprehensive Specifications & Performance Metrics

Multi-Level Hardware Protection & System Reliability

Continuous, unattended operation in commercial venues requires stringent protection mechanisms. The TC-2200B integrates six hardware protection modules:

• Intelligent Peak Clipper & Limiter: Automatically controls output signal clipping, guarding voice coils against over-excursion damage.
• Thermal & Voltage Regulation: Variable-speed temperature-controlled fans dynamically adjust cooling performance based on internal heatsink thermistors.
• Comprehensive Safeguards: Integrated protection against Overvoltage, Undervoltage, Overcurrent, Output Short-Circuit, and DC Offset.

Flexible Input/Output Connectivity & Application Scenarios

The rear panel of the TC-2200B offers flexible routing options for professional AV installations:

• Balanced XLR Inputs & Link Outputs: Dual LINE balanced XLR inputs paired with parallel XLR link outputs for effortless daisy-chaining across multi-amplifier setups.
• Industrial Output Connectors: Dual 4-pin SpeakON jacks ensure secure, low-resistance speaker connections.
• Selectable Operation Modes: Quick hardware switching between MONO, STEREO, and BRIDGE modes to adapt to diverse loudspeaker setups.

Target Applications:

• Corporate & Government: Executive boardrooms, teleconference suites, and multi-function halls.
• Education & Culture: University lecture theaters, training centers, and school auditoriums.
• Houses of Worship & Fine Arts: Chapels, art studios, and boutique acoustic venues.

Conclusion & System Integration Value

As commercial AV systems become more compact and energy-conscious, the itc TC-2200B delivers an optimal balance of structural compactness, thermal efficiency, and high-fidelity sound quality. Backed by rigorous ISO9001 and CE quality management processes, it provides system integrators with a dependable, cost-effective amplification solution.

For more information on the TC-2200B digital amplifier series or to request technical documentation, visit www.itcprosound.com or contact info@itc-pa.com.cn.
